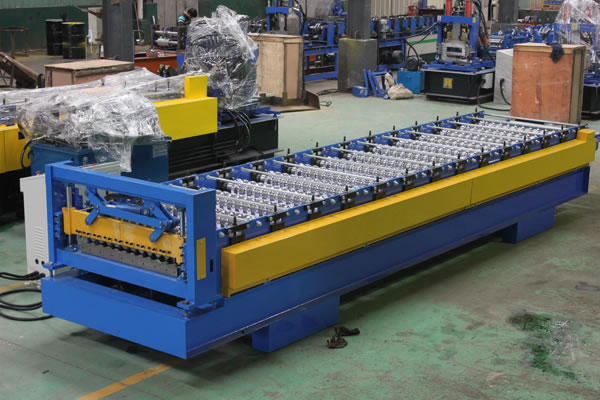

Corrugated Tile Roll Forming Machine
Corrugated tile roll forming machine consists of sheet guiding equipment, mainframe transmission and roll forming system. Some final products are designed for automobile, building (such as roofing, ceiling, wall materials and dry wall (track and stud) material), gate-panel, guard-panel and sound insulation.
Component and Function
1. Sheet guiding equipment: Using guiding equipment of leader sliding block style. The width and the left or right position can be adjusted only by adjusting the leader, then the sliding block can realize left or right movement.
2. Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.

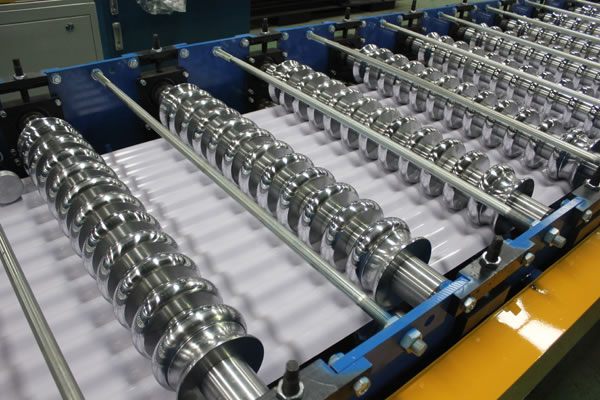

3. Roll forming system: The main frame of corrugated tile roll forming machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool.
Advantages of Wave Roll Forming Machine
1. Certificate: ISO 9001, CE
2. Designed by experienced R&D members with lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine control system.
4. Roller cover with 0.05mm chrome. 82mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment:Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8. Technician overseas installing and training available
9. 72mm diameter solid steel shaft
Technical Parameter of Corrugated Tile Roll Forming Machine
Item |
Specification |
|
Material |
Type |
Pre-painted
steel coil & galvanized coils |
Thickness |
0.4
to 0.7mm |
|
Yield
strength |
235
to 345Mpa |
|
Roller
material |
45#Chrome
steel |
|
Forming
speed |
About
20m/min |
|
Output
speed |
20m/min |
|
Speed
adjusting mode |
AC
Frequency |
|
Roller
drive |
Decelerating
motor +Chain drive |
|
Cutting
mode |
Hydraulic
cutting |
|
Cutter
material |
Cr12
mould steel |
|
Length
measurement |
Encoder |
|
Control
mode |
Panasonic
PLC |
|
Operating
mode |
Button
+Panasonic Touch screen |
|
Main
motor power(kW) |
7.5kW |
|
Hydraulic
station motor power(kW) |
2.2
kW |
Components of Wave Roll Forming Machine
Decoiler |
1set |
Feeding
& guiding device |
1set |
Main
roll forming machine |
1set |
Hydraulic
cutting system |
1set |
Controlling
system |
1set |
Run
out table |
1set |
