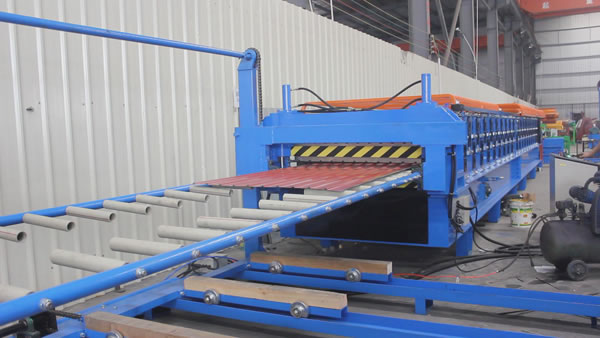

Double Layer Roll Forming Machine
The main frame of double layer roll forming machine is welded separately and the outside wall is connected by screw after being roto-blasted on the surface. The rollers are surface-chrome plated after being machined by the exact machine tool.
Component and Function
1. Sheet guiding equipment: Double layer roll former uses guiding equipment of leader sliding block style. The width and the left or right position can be adjusted only by adjusting the leader, then the sliding block can realize left or right movement.
2. Mainframe Transmission: Transfer the main motor power to the rollers through chains and sprockets, and also transfer the coil sheet.
Features of Double Layer Roll Forming Machine
1. Certificate: ISO 9001, CE
2. Designed by experienced R&D members with lifetime services Lifetime services
3. Introduced Mitsubishi PLC with touch screen to machine control system.
4. Roller cover with 0.05mm chrome. 82mm diameter solid steel shaft. Lifetime>10years.
5. One worker operation (minimum)
6. Heat treatment: Cutting blade. Quenched treatment: Cr12 mould steel cutter
7. Product cut-to-length.
8. Technician overseas installing and training available
Advantages of Double Layer Roll Forming Machine
1.Take the EUROPEAN Quality Standard
2. Choose the best Material and Components
3. Over 30-year-experienced experts and top international sales to care your needs
4. Offer the highest quality but the best price in prevailing market
5. Customized products is available
Designated Use of Double Layer Roll Former
1. Some final products for automobile.
2. Some final products for Building, such as for roofing, ceiling, wall materials and dry wall (track and stud) material.
3. Some final products for gate-panel, guard-panel and sound insulation
Parameters of Double Layer Roll Forming Machine
Item |
Specification |
|
Material |
Type |
Pre-painted
steel coil & galvanized coils |
Thickness |
0.3
to 0.7mm |
|
Yield
strength |
235Mpa
or 550Mpa |
|
Roller
material |
No.45
forged steel, with hard chrome coating 0.05mm |
|
Forming
speed |
About
20m/min |
|
Speed
adjusting mode |
AC
Frequency |
|
Roller
drive |
Decelerating
motor + Chain drive |
|
Cutting
mode |
Hydraulic
cutting |
|
Cutter
material |
Cr12
mould steel |
|
Length
measurement |
Encoder |
|
Control
mode |
Mitsubishi
PLC |
|
Operating
mode |
Button
+ Mitsubishi Touch screen |
|
Main
motor |
7.5kW |
|
Hydraulic
station motor |
2.2kW |
Machine Components of Double Layer Roll Former

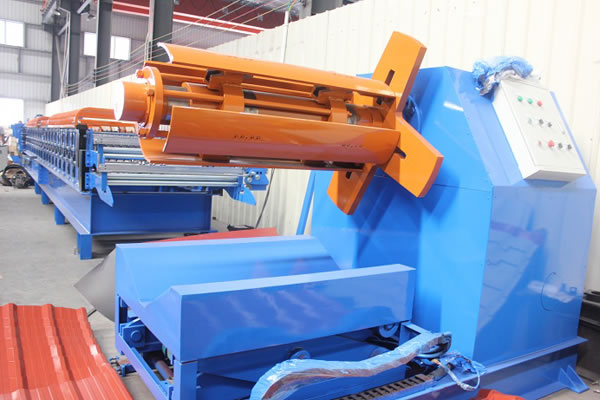

Decoiler (manual/ hydraulic decoiler for option) |
1set |
Feeding
& guiding device |
2set |
Main
roll forming machine |
2set |
Hydraulic
cutting system |
1set
(2 blades) |
Controlling
system |
1set |
Run
out table (auto. Stacker for option) |
1.5m/
pc, 2 pcs |
