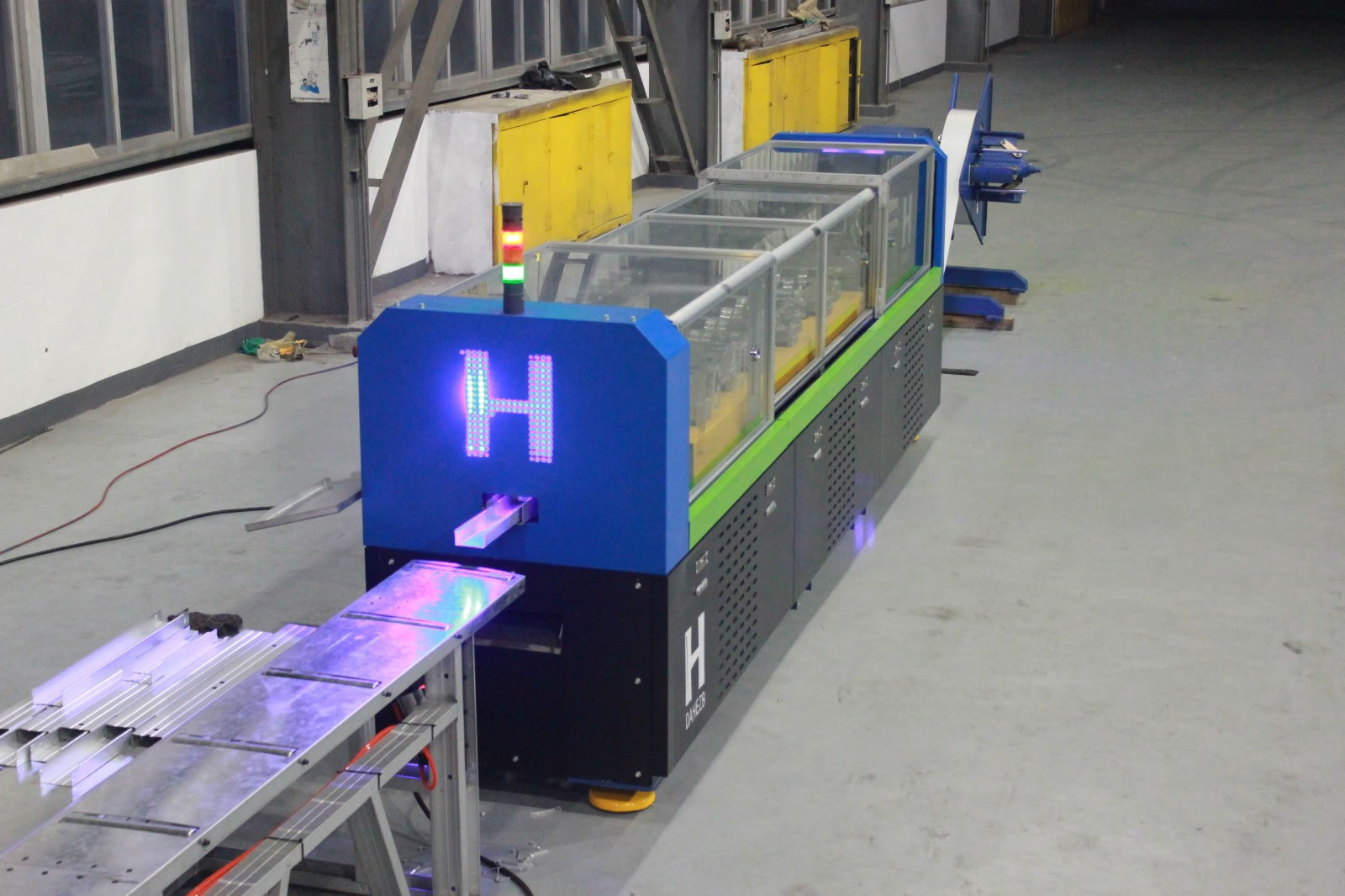

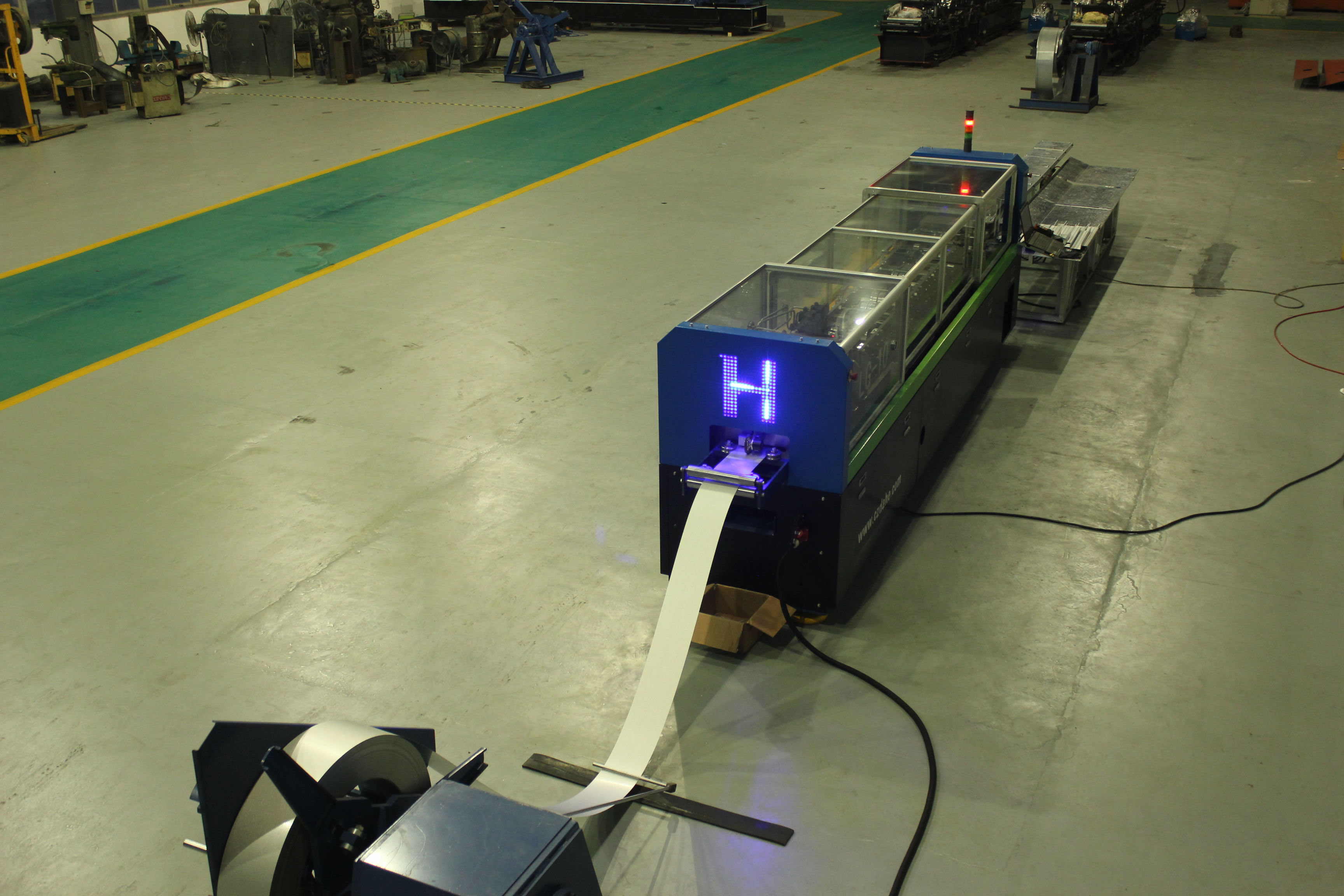

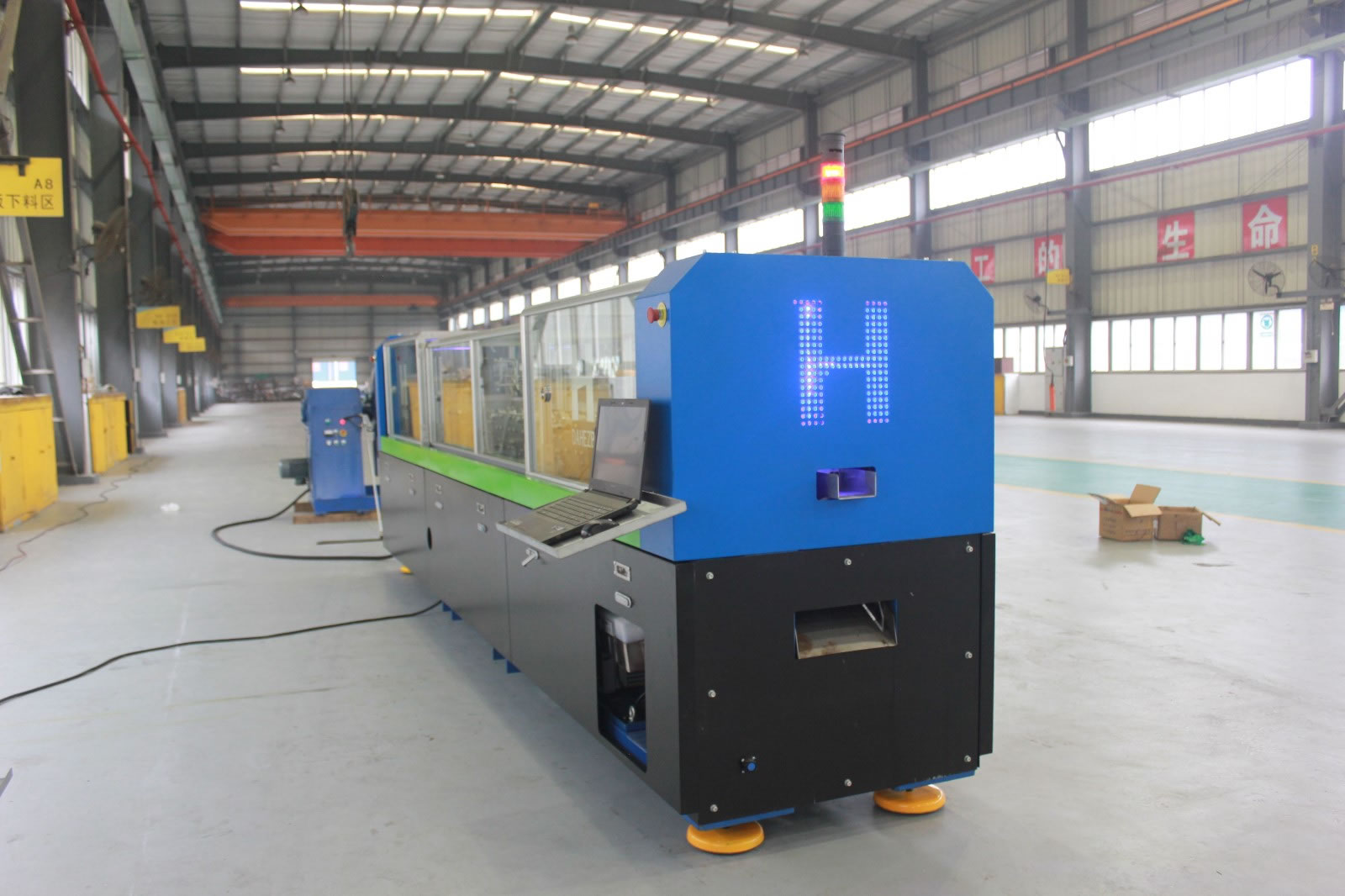

LG-10 Light Gauge Steel Roll Former (Single Specification)
Description
Single specification LG-10 light gauge steel roll former is suitable for 1 to 3 residential building, manufacturing floor joist, wall panel, roofing panel, truss and stud. Our machinery is reliable and built to such a high standard residential house with easy control system and operation system.
Advantages of Light Gauge Steel Frame Roll Forming Machine
1. Roll forming speed: 4 tons/ 8 hours. Maximum: 35 meters/ min without punching.
2. Appearance: All chain are inside of frame. Machine covered with safety guard.
3. Machine frame: Intergrated.
4. House design software: Vertex BD or Truss D & E.
5. Online inject printer: Print marks on C profile surface.
6. Hydraulic auto side slide stack.
7. Motor: Servo motor
8. Precision: +-1 mm
9. Dahe’s self-development controller is able to read TXT format and connect with machine directly.
10. The controller can control machine auto-running and demonstrate forming status dynamically, including punching and cutting status. It is able to display production data on computer screen.
Parameters of LG-10 Light Gauge Steel Roll Former
Model |
Optional |
LG-10 |
LG-10T |
LG-300 |
||||
Specification |
* |
70mm |
89mm |
140mm |
70mm/89mm |
89mm/140mm |
89mm to 300mm |
|
Function |
* |
Single specification |
Single specification |
Single specification |
Dual-specification |
Dual-specification |
Multi size changing |
|
Printer |
√ |
both hole printer |
both hole printer |
both hole printer |
both hole printer |
both hole printer |
both hole printer |
|
Profile |
* |
C |
C |
C |
C |
C |
C |
|
Thickness of raw material |
* |
0.75 to 1.2mm |
0.75 to 1.2mm |
0.75 to 1.2mm |
0.75 to 1.2mm |
0.75 to 1.2mm |
0.75 to 2.0mm |
|
Operation system |
* |
LG-R1 |
LG-R1 |
LG-R1 |
LG-R3 |
LG-R3 |
LG-R5 |
|
Machine control |
* |
Dahe brand digital control
CNC system |
Dahe brand digital control CNC system |
Dahe brand digital control CNC system |
Dahe brand digital control CNC system |
Dahe brand digital control CNC system |
Dahe brand digital control CNC system |
|
Design software |
√ |
Vertex/JFBA |
Vertex/JFBA |
Vertex/JFBA |
Vertex/JFBA |
Vertex/JFBA |
Vertex/JFBA |
|
Forming speed (high speed without punching &
cutting) |
* |
30m/min |
30m/min |
30m/min |
30m/min |
30m/min |
30m/min |
|
Motor power |
* |
5.5kW |
5.5kW |
5.5kW |
7.5kW |
7.5kW |
15kW |
|
Hydraulic motor power |
* |
7.5kW |
7.5kW |
7.5kW |
7.5kW |
7.5kW |
11kW |
|
Hydraulic cooling |
* |
Cooling system |
Cooling system |
Cooling system |
Cooling system |
Cooling system |
Cooling system |
|
Hydraulic accumulator |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Shearing |
* |
post cutter |
post cutter |
post cutter |
post cutter |
post cutter |
post cutter |
|
Triple hole |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Pipeline hole |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Service hole |
||||||||
Connection counter bored
hole |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Web swage |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Lip cut |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Turss notch |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Web notch |
* |
√ |
√ |
√ |
√ |
√ |
√ |
|
Corner hole |
√ |
/ |
/ |
/ |
/ |
/ |
√ |
|
Other hole |
√ |
/ |
/ |
/ |
/ |
/ |
/ |
|
Voltage |
* |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
380V/50Hz |
|
Hydraulic station |
* |
230L |
230L |
230L |
230L |
230L |
230L |
|
Dimension |
* |
5.3m×1.1m×1.6m |
5.3m×1.1m×1.6m |
5.3m×1.1m×1.6m |
5.3m×1.6m×1.6m |
5.3m×1.6m×1.6m |
7.5m×1.3m×1.6m |
|
Weight |
* |
3.5T |
3.5T |
3.5T |
4.5T |
4.5T |
7T |
|
Uncoiler |
√ |
3T |
3T |
3T |
3T |
3T |
3T |
|
Stacker |
√ |
3M |
3M |
3M |
3M |
3M |
3M |
|
Note of LG-10 Light Gauge Steel Roll Former
1. Usage range: 1-3 layer resident or steel house
2. Maintain roll former one time per month
3. Only need to use C profile: One size of profile for a 2-3 level house. No need to use any other size profile.
