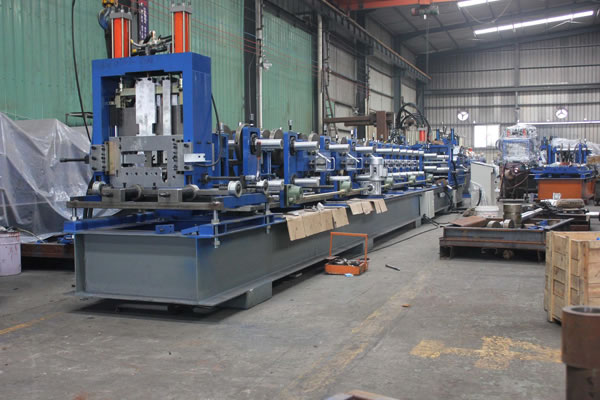

SN80-300 Automatic CZ Purlin Interchangeable Roll Former

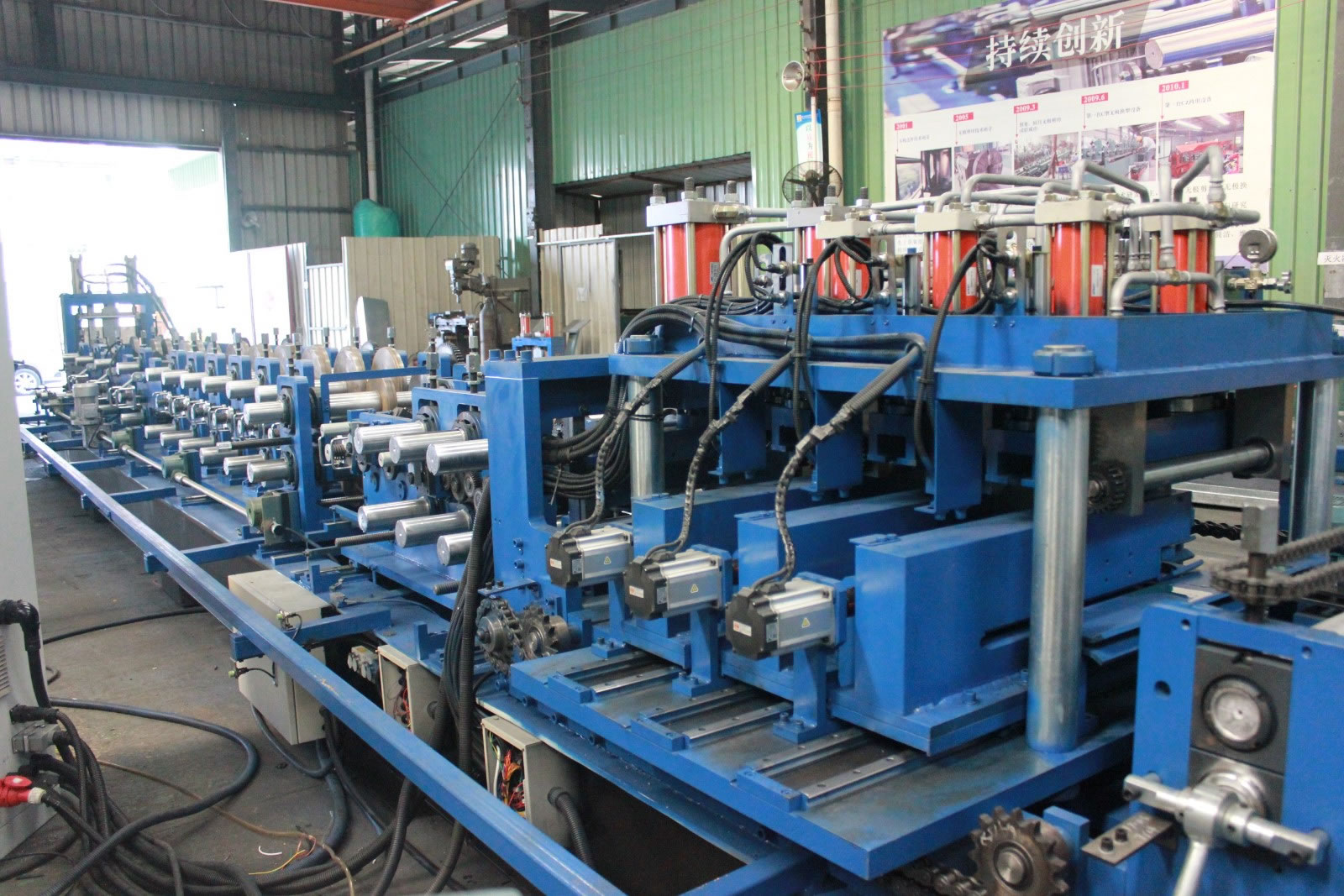

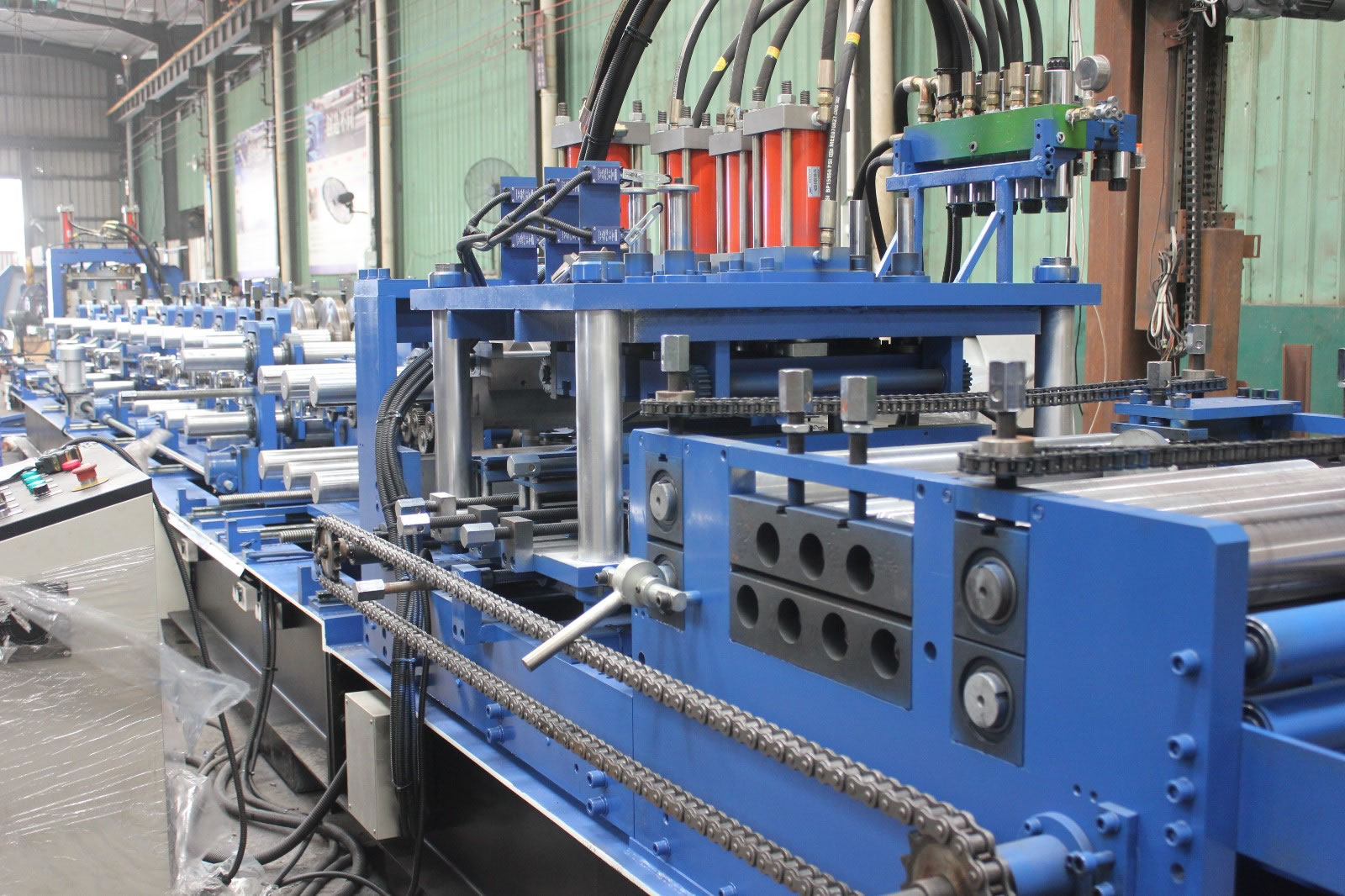

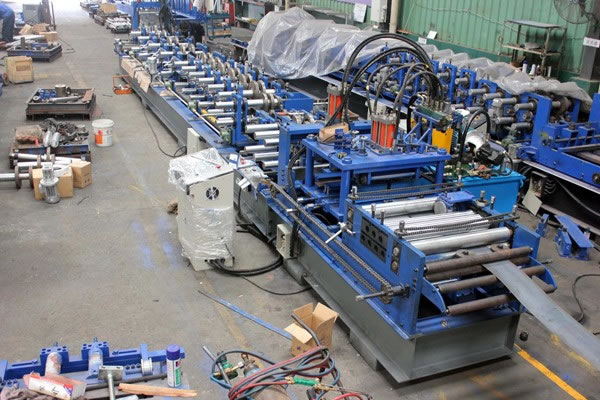

SN80-300 CZ interchangeable roll former is mainly consists of manual uncoiler, roll forming machine, computer control system, hydraulic control system and molding cutter. The machine runs very smoothly and can be debugged with little noise.
Flow Chart

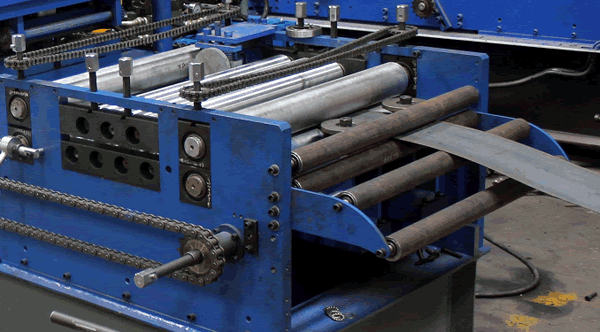

De-coiler – Leveling device -- pre- punching and pre-cutting – roll forming parts – stack
Features
1. CZ quick change forming machine assemble with liner guide way to make machine change web size easily and smoothly
2. Produce standard products with yield strength up to 345Mpa
3. Long production line
4. Interchanged CZ profile in 10 minutes
5. No open mouth on final products
6. Material yield strength: 195Mpa to 345Mpa
Parameters of CZ Interchangeable Roll Former
NO. |
Item |
Parameters |
|
Three-phase asynchronous motor |
Hydraulic motor |
||
1 |
Thickness of material |
1.5 to 3.0mm |
|
2 |
Main motor power |
18.5kW |
22kW |
3 |
Hydraulic pressure |
16Mpa |
|
4 |
Control system |
PLC control panel |
|
5 |
Shaft material |
40Cr (Ф85/Ф75) |
|
6 |
Roller material |
Cr12 Vacuum heat treatment |
|
7 |
Forming speed |
6 to 10m/min |
12 to 18m/min |
8 |
Cutting blade material |
Cr12Mov |
|
9 |
Roller station |
19 Stations |
|
10 |
Size of machine(L×W×H) |
12m × 1.35m × 1.75m |
