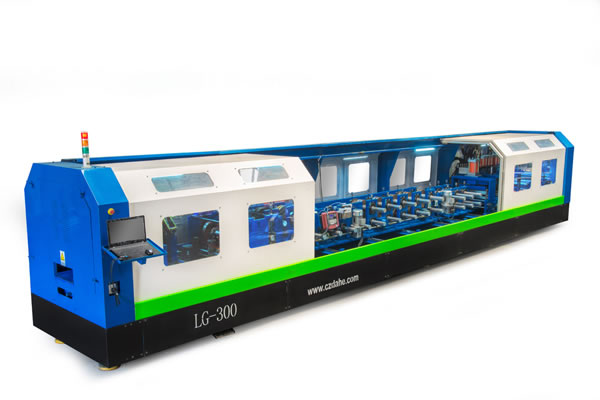

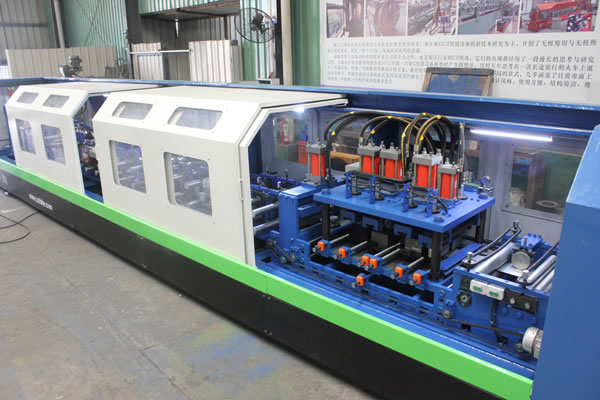

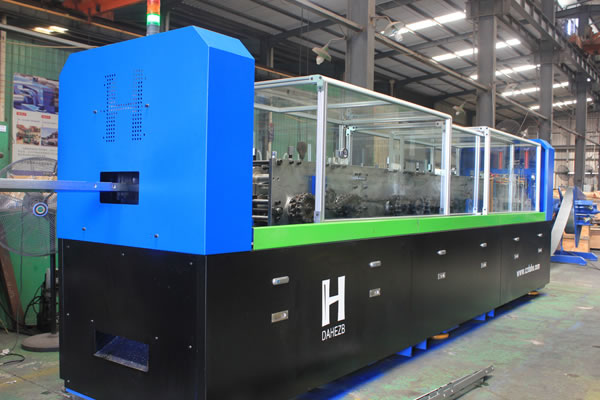

Light Gauge Steel Roll Former (Multi Specifications) LG-300

Description
Multi specifications LG-160 light gauge steel forming machine is applied for 1 to 10 residential building, producing floor joist, wall panel, roofing panel, truss and stud.

Features
1. Residential applications: Only need to use C profile: One size of profile for a 2 to 3 level house. No need to use any other size profile.
2. The technology can be used to manufacture light gauge steel frames and trusses for a range of projects from volume one and two low rise residential group housing projects to 10 level apartment buildings.
3. This light gauge steel roll form machine is reliable and built to such a high standard residential house with easy control system and operation system.

Advantages of LG-160 Light Gauge Steel Forming Machine
1 .Roll forming speed: 4 tons/ 8 hours. Maximum: 35 meters/ min without punching.
2. Appearance: All chain are inside of frame. Machine covered with safety guard.
3. Machine frame: Intergrated.
4. House design software: Vertex BD or Truss D & E
5. Online inject printer: Print marks on C profile surface.
6. Hydraulic auto side slide stack.
7. Motor: Servo motor
8. Precision: +-1 mm
9 . Auto size adjusting: from 89mm to 300mm
10. Controller: Dahe’s self-development controller is able to read TXT format and connect with machine directly.
11. Controller can control machine auto-running and demonstrate forming status dynamically, including punching and cutting status. It is able to display production data on computer screen.

Parameters of LG-300 Light Gauge Steel Forming Machine

Model	Optional	LG-10			LG-10T			LG-300
Specification	*	70mm	89mm	140mm	70mm/89mm	89mm/140mm	89mm to 300mm
Function	*	Single specification	Single specification	Single specification	Dual-specification	Dual-specification	Multi size changing
Printer	√	both hole printer	both hole printer	both hole printer	both hole printer	both hole printer	both hole printer
Profile	*	C	C	C	C	C	C
Thickness of raw material	*	0.75 to 1.2mm	0.75 to 1.2mm	0.75 to 1.2mm	0.75 to 1.2mm	0.75 to 1.2mm	0.75 to 2.0mm
Operation system	*	LG-R1	LG-R1	LG-R1	LG-R3	LG-R3	LG-R5
Machine control	*	Dahe brand digital control CNC system	Dahe brand digital control CNC system	Dahe brand digital control CNC system	Dahe brand digital control CNC system	Dahe brand digital control CNC system	Dahe brand digital control CNC system
Design software	√	Vertex/JFBA	Vertex/JFBA	Vertex/JFBA	Vertex/JFBA	Vertex/JFBA	Vertex/JFBA
Forming speed (high speed without punching & cutting)	*	30m/min	30m/min	30m/min	30m/min	30m/min	30m/min
Motor power	*	5.5kW	5.5kW	5.5kW	7.5kW	7.5kW	15kW
Hydraulic motor power	*	7.5kW	7.5kW	7.5kW	7.5kW	7.5kW	11kW
Hydraulic cooling	*	Cooling system	Cooling system	Cooling system	Cooling system	Cooling system	Cooling system
Hydraulic accumulator	*	√	√	√	√	√	√
Shearing	*	post cutter	post cutter	post cutter	post cutter	post cutter	post cutter
Triple hole	*	√	√	√	√	√	√
Pipeline hole	*	√	√	√	√	√	√
Service hole
Connection counter bored hole	*	√	√	√	√	√	√
Web swage	*	√	√	√	√	√	√
Lip cut	*	√	√	√	√	√	√
Turss notch	*	√	√	√	√	√	√
Web notch	*	√	√	√	√	√	√
Corner hole	√	/	/	/	/	/	√
Other hole	√	/	/	/	/	/	/
Voltage	*	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz	380V/50Hz
Hydraulic station	*	230L	230L	230L	230L	230L	230L
Dimension	*	5.3m×1.1m×1.6m	5.3m×1.1m×1.6m	5.3m×1.1m×1.6m	5.3m×1.6m×1.6m	5.3m×1.6m×1.6m	7.5m×1.3m×1.6m
Weight	*	3.5T	3.5T	3.5T	4.5T	4.5T	7T
Uncoiler	√	3T	3T	3T	3T	3T	3T
Stacker	√	3M	3M	3M	3M	3M	3M

Note of Light Gauge Steel Roll Form Machine
1. Usage range: 1-10 layers resident or steel house
2. Maintain roll former one time per month
3. Only need to use C profile. No need to use any other size profile
