Description

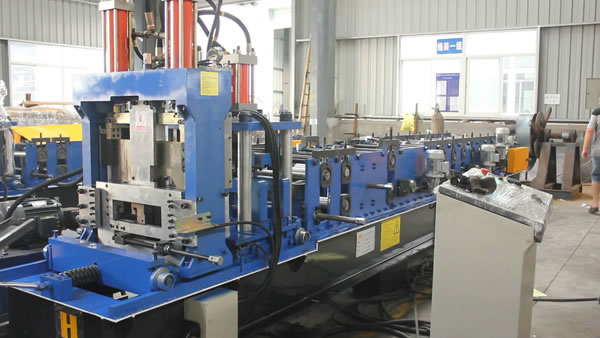

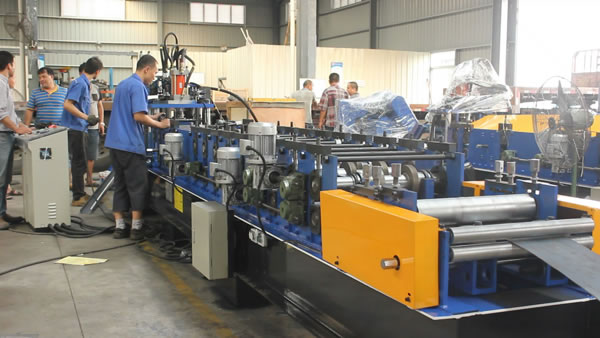

MC50-250 C purlin roll former is suitable for cabinet house and prefabricated house. It features light weight, small and stable running.

Flow Chart
De-coiler – leveling device – roll forming parts – post punching and post cutting – stack.

Advantages
1. 12 years’ manufacturing experience in C/Z purlin roll former
2. Competitive price and good quality
3. One year free warranty
4. Fast response of after sale service
5. Auto web size is changing from 50mm to 250mm in 2 minutes
6. Auto C purlin roll form machine can be customized by clients’ requirements.
7. Easy operate and easy to maintain
8. Self-developed of post cutter, one blade to cutter all size of final products

Parameters of MC50-250 C Purlin Roll Former

No.	Name	Parameter
		Three-phase asynchronous motor	Hydraulic motor
1	Thickness	0.8 to 2.5mm
2	Main Motor	15kW	18.5kW
3	Hydraulic pressure	16Mpa
4	Control system	PLC
5	Shaft material	40Cr (Ф70)
6	Roller	Cr12 vacuum treatment
7	Forming speed	6-10m/min	12 to 18m/min
8	Blade material	Cr12Mov
9	Forming station	15 Stations
10	Dimension(L×W×H)	7m × 1.2m × 1.5m

Note
1. Suitable for cabinet house and prefabricated house
2. Maintain machine one time per month
