Introduction

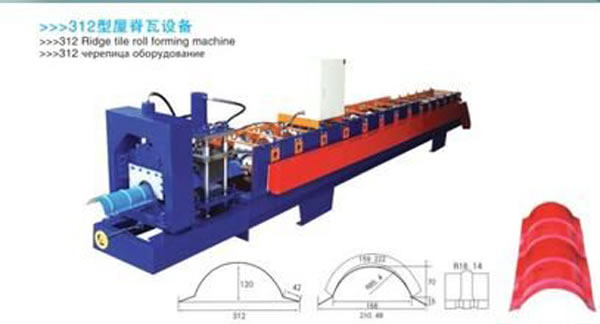

Ridge cap forming machine consists of un-coiler and its base, coil sheet guiding equipment, film covered device, roll forming system, pressing equipment, post-cutting equipment, hydraulic station, controlling system and supporter table.

Products Feature
1. A stylish and attractive design, giving the appearance of a traditional roof tile.
2. Resistant to frost, heat, hail and gales: 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, elegant and noble looking. It is widely used for the garden like factory, hotel, exhibition, villa, civil construction, etc.

Features of Ridge Cap Forming Machine
1. Precise forming.
2. High-solid forming stand guarantees the good and uniform quality of final products.
3. The operation automatically minimizes the tolerance of cutting length.

Notes of Cap Ridge Roll Former
1. Hydraulic decoiler with break is equipped for roll forming production, not manual one.
2. Refine steel plates in 22 to 25 mm as sidewall of machine is used.

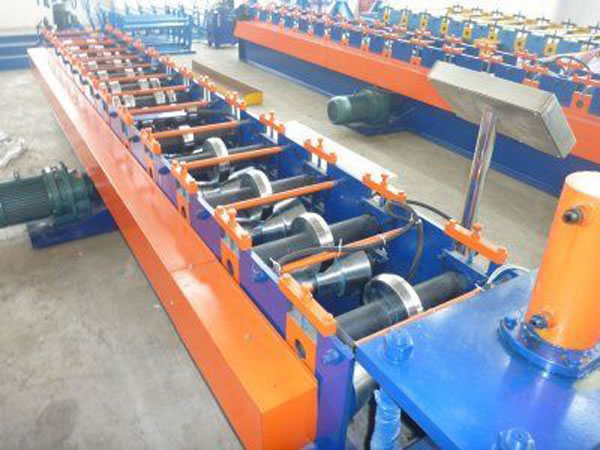

3. 12 to 16 Nos of rollers is used for ridge cap forming, ensuring profile strength.
4. Step forming by AC motor is adopted for its ridge stepping.
5. Mitsubishi (Japan) PLC and 5.7' touchable screen are used for for data processing and setting.
6. Roll forming speed is 2 to 12 meters / minute.

Parameters of Ridge Cap Forming Machine

NO.	Item		Parameter	Remark
1	Suitable material	Type	Pre-painted sheet
		Thickness(mm)	0.35 to 0.7	Design based on 0.5
		Yield stress (Mpa)	235
		Width (mm)	340
2	Forming speed (m/min)		5	Not including cutting time
3	Main machine motor(kW)		3 × 2	Depend on final design
4	Hydraulic station power(kW)		5.5	Depend on final design
5	Total power(kW)		11.5	Depend on final design
6	Power		AC380V,50Hz, 3Phase	According to customer request
7	External dimensions(L×W×H, m)		13 × 1.0 × 1.7	Depend on final design
