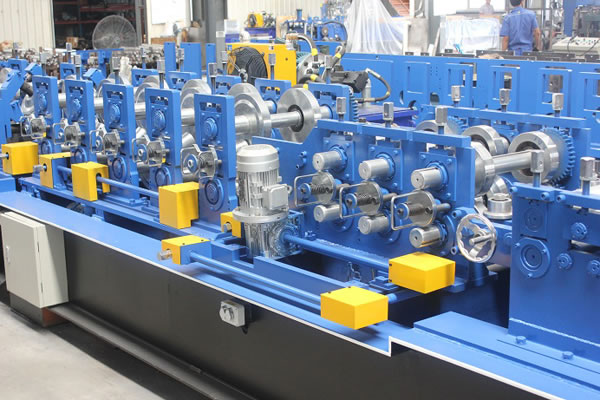

SX80-300 CZ Purlin Interchangeable Roll Former
SX80-300 Auto CZ purlin interchangeable roll former can be used for processing 1.0 to 3.0mm C/Z purline. It is composed of decoiler, leveler, punching cut off machine, molding machine, hydraulic pressure station, material-collecting platform, controller, etc.
Flow Chart

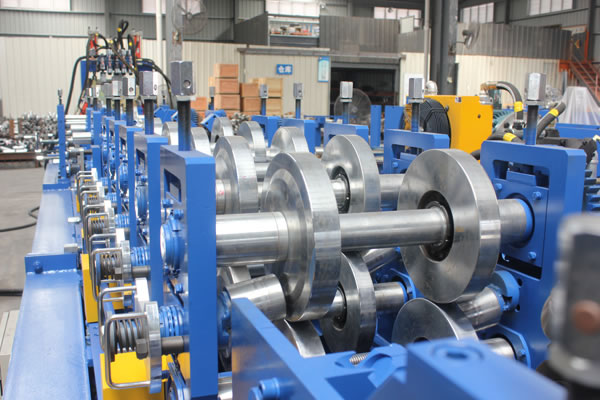

De-coiler → Leveling device → roll forming parts → post punching and post cutting → stack
Features
1. CZ quick change roll forming machine assemble with liner guide way to make machine change web size easily and smoothly
2. Produce standard products with yield strength up to 345Mpa
3. Long production line
4. Interchanged CZ profile in 10 minutes
5. No open mouth on final products
Note
Usage: Factory construction, heavy steel frame structure
Material yield strength: Thickness 1to 3mm, 195Mpa to 235Mpa
Thickness: 1 to 2.5mm, 195Mpa to 345Mpa
Parameters of Auto CZ Purlin Interchangeable Roll Former
No. |
Item |
Parameter |
|
|
|
Three-phase asynchronous motor |
Hydraulic motor |
1 |
Thickness |
1.0
to 3.0mm |
|
2 |
Main
Motor |
15kW |
22kW |
3 |
Hydraulic
pressure |
16Mpa |
|
4 |
Control
system |
PLC |
|
5 |
Shaft
material |
40Cr(Ф75) |
|
6 |
Roller
material |
Cr12
vacuum heat treatment |
|
7 |
Forming
speed |
8
to 15m/min |
12
to 18m/min |
8 |
Blade
material |
Cr15Mov |
|
9 |
Forming
station |
18 Stations |
|
10 |
Dimension |
10m
× 1.35m × 1.75m |
