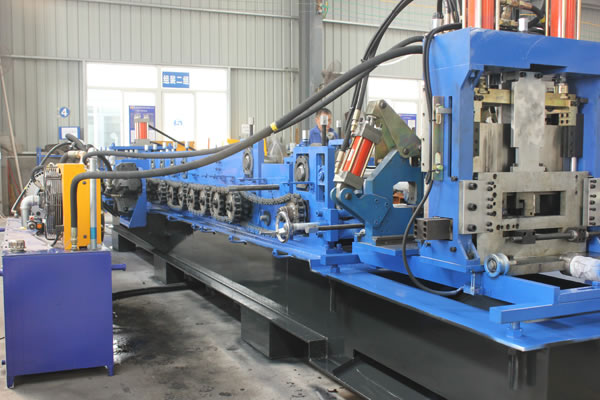

LS75-300 C Purlin Roll Former
LS75-300 C purlin roll forming machine is used for factory construction, heavy steel frame structure, which can produce standard products with yield strength less than 345Mpa.
Features
1. Auto web size is changing from 75mm to 300mm in 2 minutes
2. Self-developed of post cutter, one blade to cutter all size of final products
3. Flow chart: De-coiler – leveling device – roll forming parts – post punching and post cutting – stack
4. C purlin forming machine assemble with liner guide way to make machine change web size easily and smoothly.
Advantages of C Purlin Roll Forming Machine
1. 12 years’ manufacturing experience in C/Z purlin roll former
2. Competitive price and good quality
3. One year free warranty
4. Fast response of after sale service
5. Can be customized by clients’ requirements
6. Easy to operate and maintain
Parameters of LS75-300 C Purlin Roll Forming Machine
NO. |
Item |
Parameters
of C Purlin Forming Machine |
|
Three-phase asynchronous motor |
Hydraulic motor |
||
1 |
Thickness of material |
1.5
to 3.0mm |
|
2 |
Main motor power |
15kW |
22kW |
3 |
Hydraulic pressure |
16Mpa |
|
4 |
Control system |
PLC control panel |
|
5 |
Shaft material |
40Cr(Ф85/Ф75) |
|
6 |
Roller material |
Cr12 Vacuum heat treatment |
|
7 |
Forming speed |
6
to 10m/min |
12
to 18m/min |
8 |
Cutting blade material |
Cr12Mov |
|
9 |
Roller station |
16 Stations |
|
10 |
Dimension(L×W×H) |
9m
× 1.35m × 1.75m |
Note
1. Usage: Factory construction, heavy steel frame structure
2. Material yield strength: 195Mpa to 345Mpa
