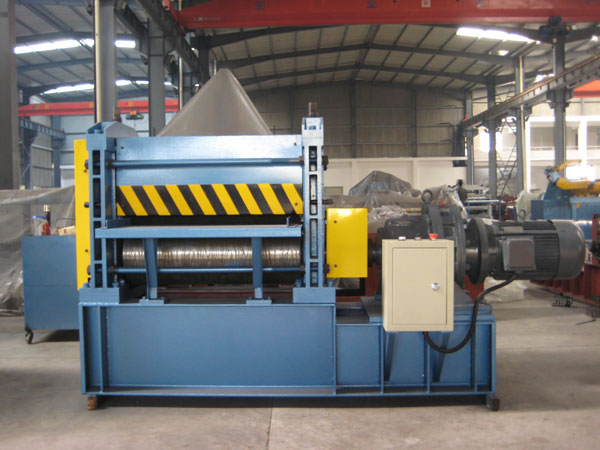

Embossing Machine
This embossing press machine is applied for guard door, steel structure, which is easy to operate and features safe and reliable.
Technical Parameters of Embossing Forming Machine
Suitable
Material of embossing press machine |
Pre-painted
Galvanized steel or Galvanized steel |
Width
of raw material |
1250mm
(other width is available) |
Thickness
of raw material |
0.3
mm to 0.7mm (235 to 345Mpa) |
Material
of roller |
45#
steel embossed with the flower and quenched treatment |
Power
Requirement |
motor
power: 11kW(Depend on final design) |
Weight
of machine |
About
2700KGS |
Size
of machine |
About
1.0 m × 2.55 m × 1.5m |
