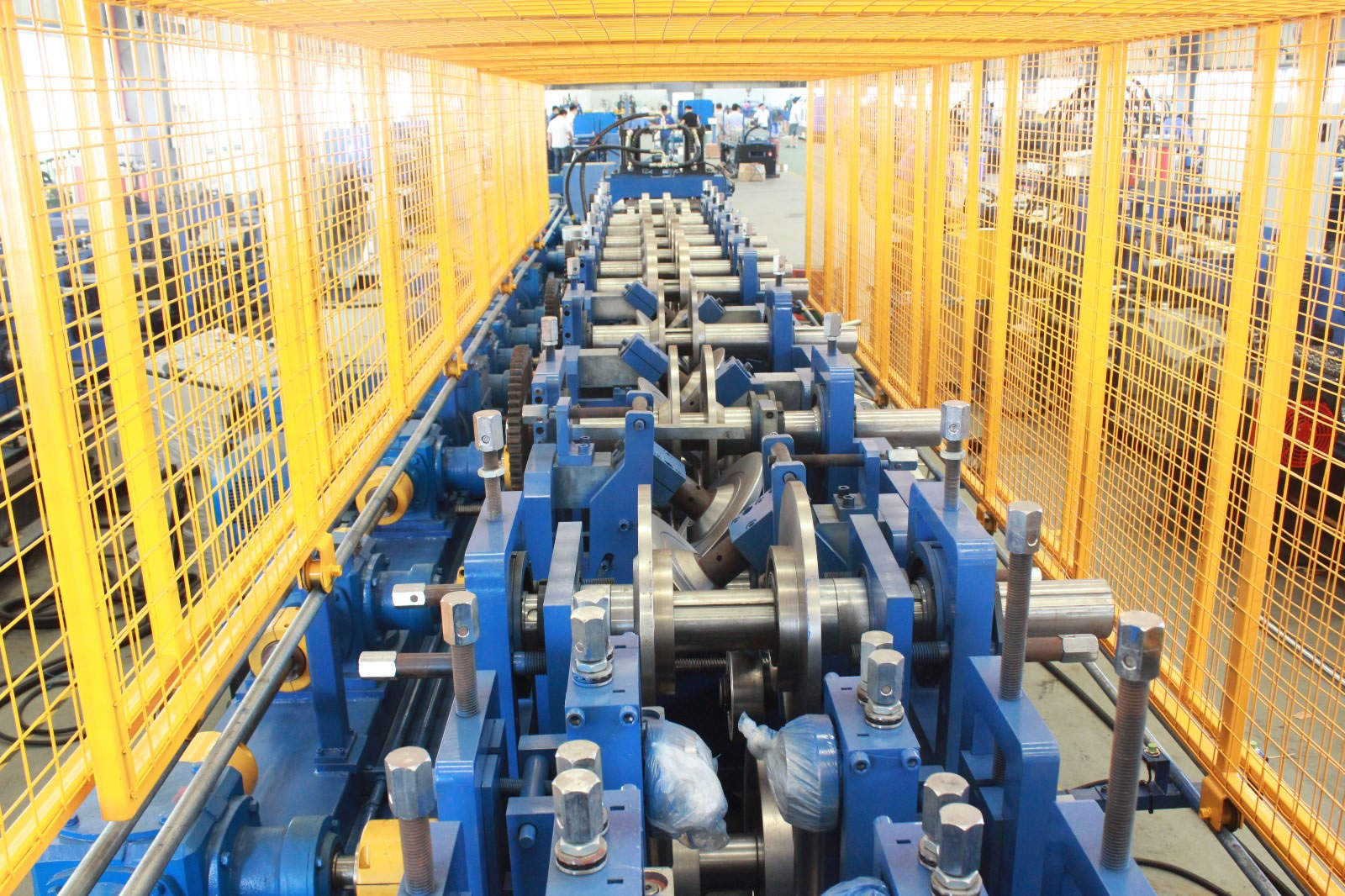

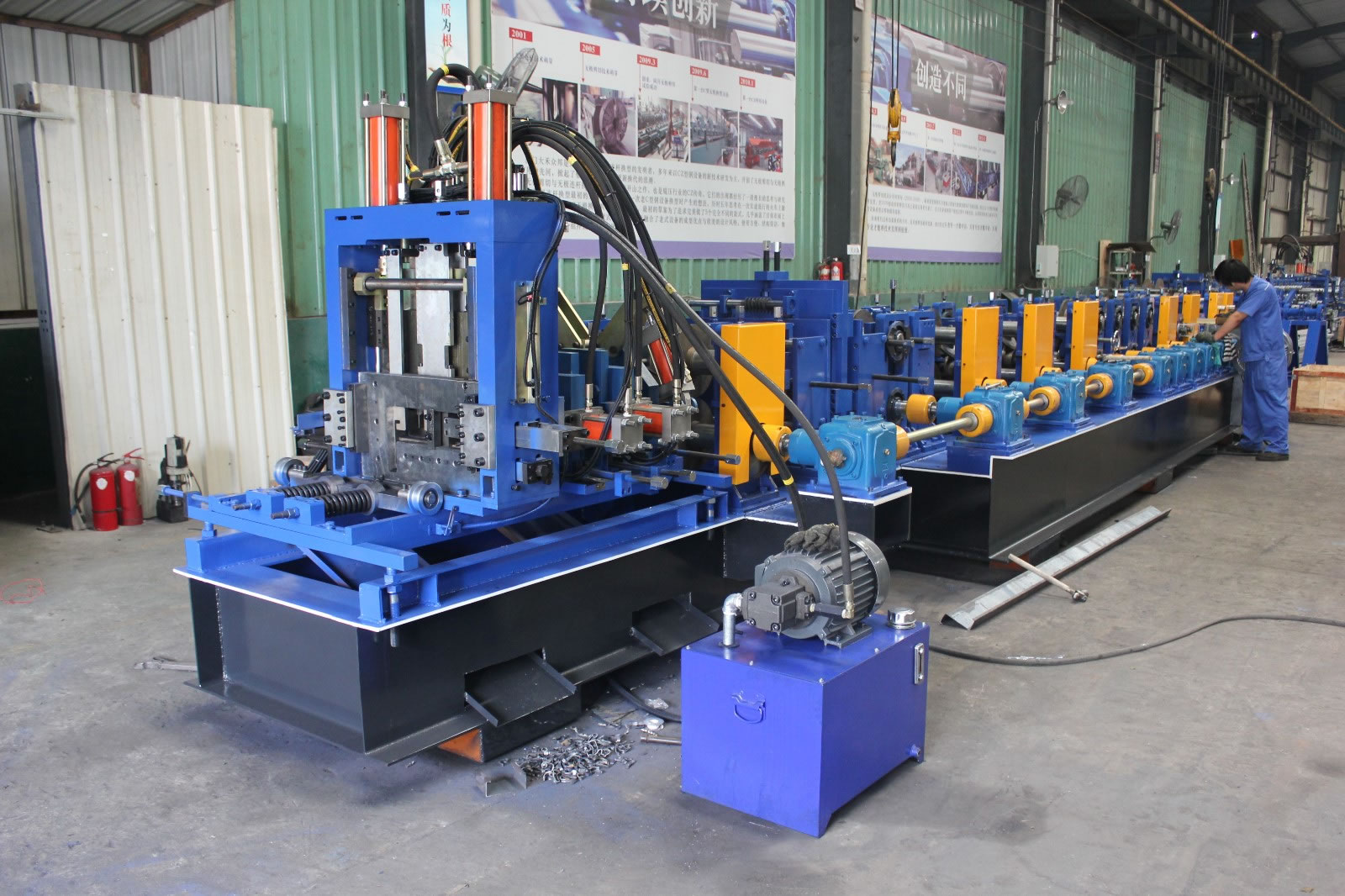

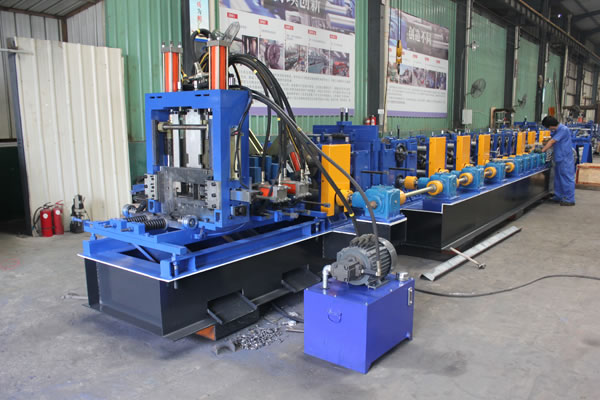

FX120-300 Auto CZ Purlin Interchangeable Roll Former
FX120-300 Auto CZ purlin roll forming machine is used for processing CZ purline with thickness from 1.5mm to 3.5mm. It is simple and convenient to install CZ purlin interchangeable roll former and interchange C and Z purline.
Features
1. CZ purlin interchangeable roll former assemble with liner guide way to make machine change web size easily and smoothly
2. Produce standard products with yield strength up to 450Mpa

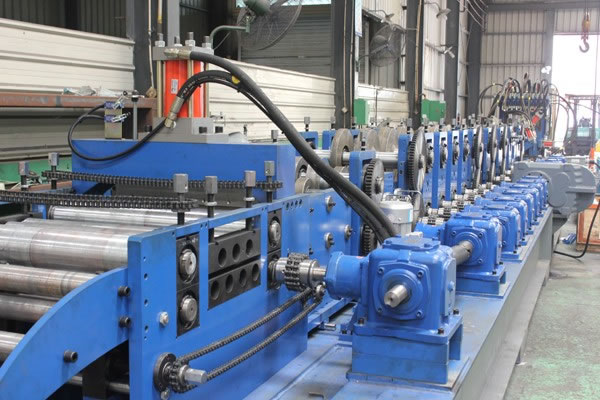

3. Gear box driving to generate powerful and stable strength
4. Long production line
5. Interchanged CZ profile in 10 minutes
Note
Usage: Factory construction, heavy steel frame structure
Material yield strength: 195Mpa to 450Mpa
Parameters of Auto CZ Purlin Roll Forming Machine
No. |
Item |
Parameter |
|
|
|
Three-phase asynchronous motor |
Hydraulic motor |
1 |
Thickness of material |
1.5
to 3.5mm |
|
2 |
Main motor power |
22kW |
33kW |
3 |
Hydraulic pressure |
16Mpa |
|
4 |
Control system |
PLC |
|
5 |
Shaft material |
40Cr |
|
6 |
Roller material |
Cr12
Vacuum heat treatment |
|
7 |
Forming speed |
8
to 15m/min |
12
to 24m/min |
8 |
Cutting blade material |
Cr12Mov |
|
9 |
Roller station |
20 Stations |
|
10 |
Size of machine(L×W×H) |
11.5m
× 1.35m × 1.75m |
