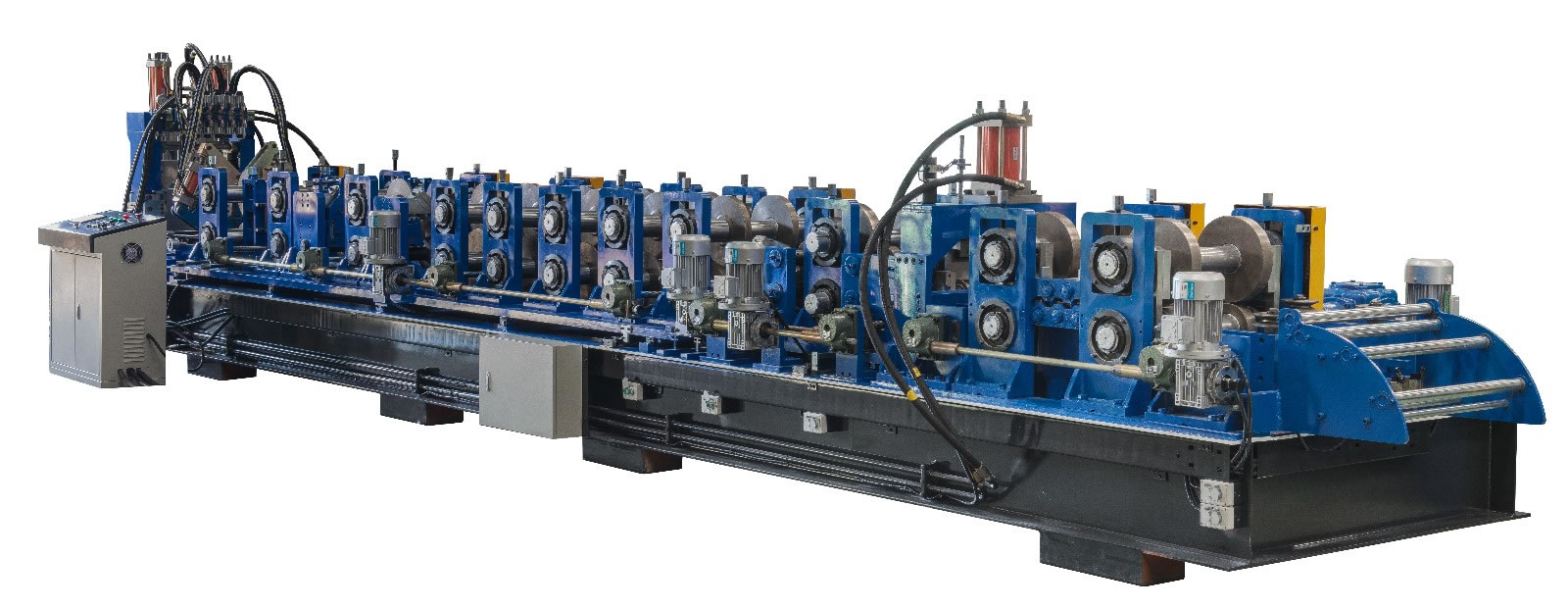

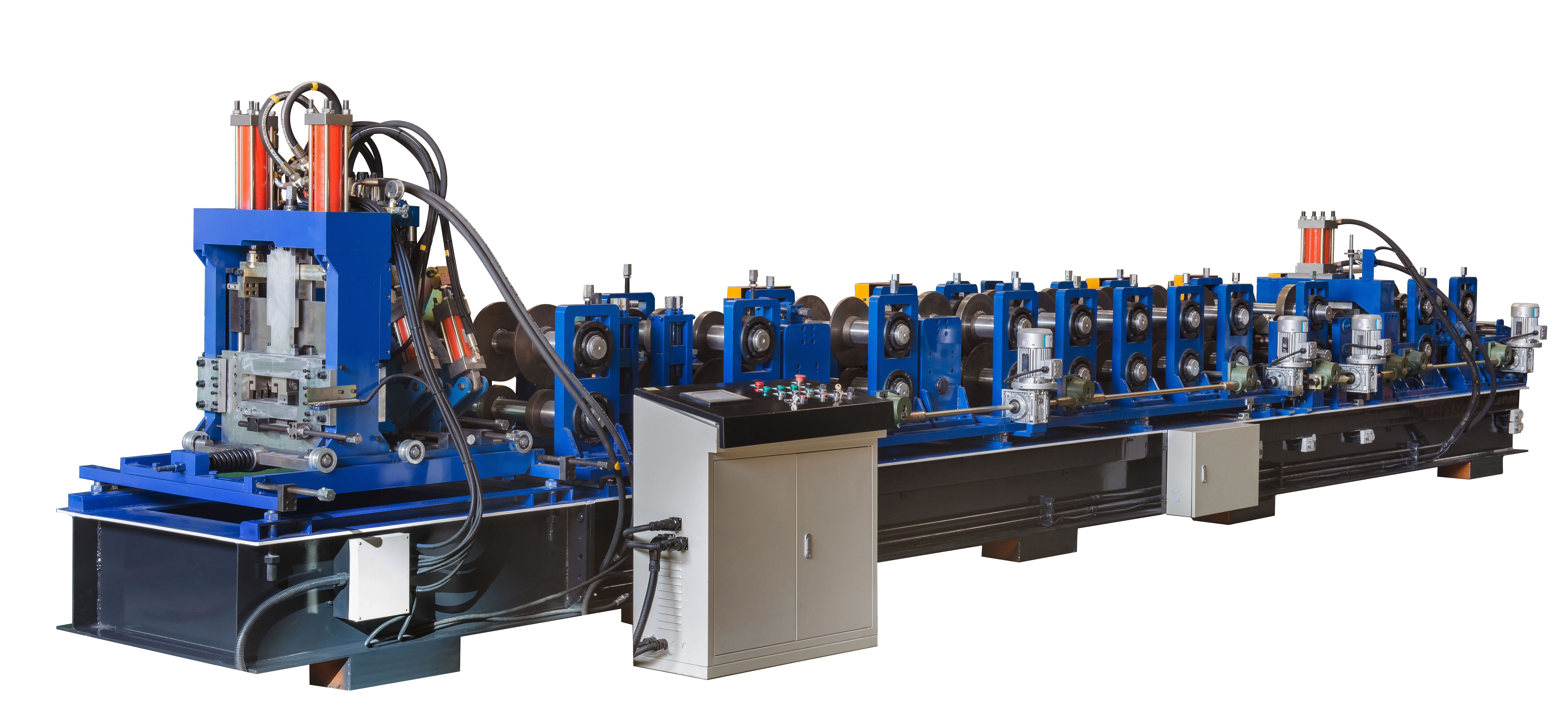

FC80-300 C Purlin Roll Former
FC80-300 auto C purlin roll former can assemble with liner guide way to make machine change web size easily and smoothly, which is used for factory construction, heavy steel frame structure.
Features of C Purlin Roll Forming Machinery
1. Produce standard products with yield strength up to 450Mpa
2. Gear box driving to generate powerful and stable strength
3. Easily roll steel sheet with thickness 4mm, yield strength 235Mpa
4. Long production line
Flow Chart
De-coiler – leveling device pre-shear – roll forming parts – post punching and post cutting – stack.
Advantages of C Purlin Roll Forming Machinery
1. Fast response of after sale service
2. Auto web size is changing from 75mm to 300mm in 2 minutes
3. Easy to operate and maintain
4. Self-developed of post cutter, one blade to cutter all size of final products
Parameters of FC80-300 Auto C Purlin Roll Forming Machine
No. |
Name |
Parameter |
|
Electric
motor |
Hydraulic
motor |
||
1 |
Thickness |
1.5
to 3.5mm |
|
2 |
Main
Motor |
22kW |
33kW |
3 |
Hydraulic
pressure |
16Mpa |
|
4 |
Control
system |
PLC |
|
5 |
Shaft
material |
40Cr9
(Ф95/Ф80) |
|
6 |
Roller
material |
Cr12
quench treatment |
|
7 |
Forming
speed |
8
to 15m/min |
12
to 24m/min |
8 |
Blade
material |
Cr12Mov |
|
9 |
Forming
station |
18 Stations |
|
10 |
Dimension
(L×W×H) |
9.5m
× 1.35m × 1.75m |
Note
Usage: Factory construction, heavy steel frame structure
Material yield strength: 195Mpa to 450Mpa
