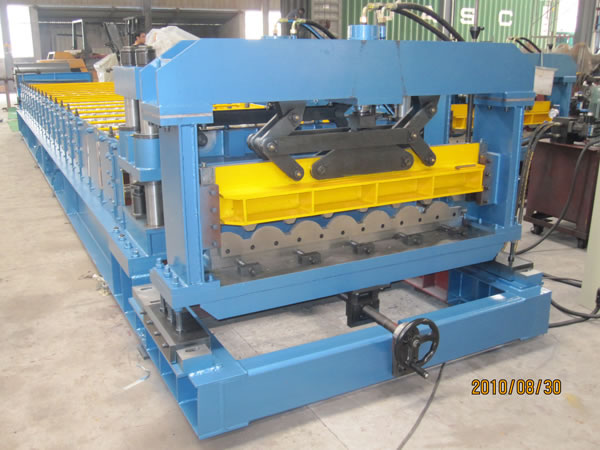

Steel Tile Roll Forming Machine
Steel tile roll forming machine can operate automatically, which minimizes the tolerance of cutting length. High-solid forming stand guarantees the good and uniform quality of final products.
Products Features
1. A stylish and attractive design, giving the appearance of a traditional roof tile.
2. Resistant to frost, heat, hail and gales: 100% waterproof, thanks to the lateral run-off channel on each sheet for several models.
3. The raw material can be in different color, with elegant and noble looking. It is widely used for the garden like factory, hotel, exhibition, villa, civil construction, etc.
Advantages of Steel Tile Roll Forming Machine
1. Certificate: ISO 9001, CE
2. Designed by experienced R&D members with lifetime services.
3. Introduced Mitsubishi PLC with touch screen to machine control system.
4. Roller cover with 0.05mm chrome. 82mm diameter solid steel shaft. Lifetime>10 years.
5. One worker operation (minimum)
6. Heat treatment: Cutting blade. Quenched treatment: Cr12 mould steel cutter.
7. Technician overseas installing and training are available.
Technical Parameter of Steel Tile Roll Forming Machine
Item |
Specification |
|
Material |
Type |
Pre-painted
steel coil & galvanized coils |
Thickness |
0.4
to 0.6mm |
|
Yield
strength |
235Mpa |
|
Roller
material |
No.45
forged steel |
|
Forming
speed |
About
10m/min |
|
Output
speed |
0
to 3m/min |
|
Speed
adjusting mode |
AC
Frequency |
|
Roller
drive |
Decelerating
motor + Chain drive |
|
Cutting
mode |
Hydraulic
cutting |
|
Cutter
material |
Cr12
mould steel |
|
Length
measurement |
Encoder |
|
Control
mode |
Mitsubishi
PLC |
|
Operating
mode |
Button
+ Mitsubishi Touch screen |
|
Main
motor |
5.5kW |
|
Hydraulic
station motor |
5.5kW |

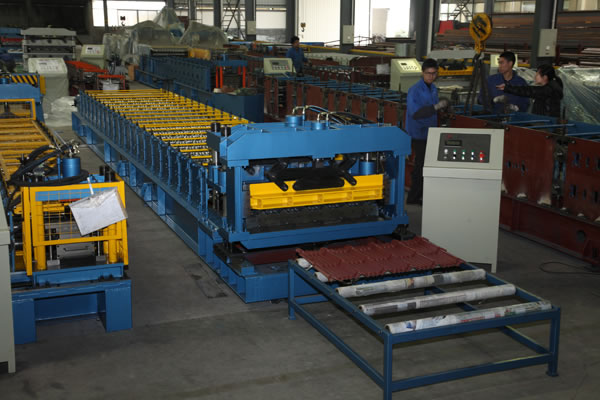

Components of Glazed Tile Roll Former
Decoiler |
1set |
Feeding
& guiding device |
1set |
Main
roll forming machine |
1set |
Hydraulic
pressing system |
1set |
Hydraulic
cutting system |
1set |
Controlling
system |
1set |
Run
out table |
1set |
